Pro Plug for PVC

PRO PLUG FOR PVC

ABOUT PRO PLUG® SYSTEM

The PRO PLUG® SYSTEM for PVC is a superior and easy to install plug system for PVC Decking and PVC Trim. It is available in a wide range of materials, including plugs for AZEK® decking and trim, Clubhouse®, Endeck, Fiberon Paramount™, Gossen®, TREXTRIM™, TUFboard®, WOLF Decking and others (check for updates to the detailed product listings below). The System features the No Cam-Out PRO PLUG® PVC Tool, both stainless and epoxy coated star drive fasteners, and plugs made from actual deck and trim material. The System consists of two components, which are sold separately:

PRO PLUG® SYSTEM EXTRAS

PRO PLUG® PVC DECK/TRIM KITS: Plugs are made from actual PVC decking or trim material, so they match perfectly. Screws are available in Stainless Steel or Epoxy Coated Carbon Steel. Both screws feature a star drive recess and are ACQ approved.

PRO PLUG® PVC Tool: The Tool drives screws to the correct depth every time in deck and trim applications. It features a No Cam-Out Auto-Stop™ mechanism that prevents the screw from stripping and a free spinning stop collar that protects the board surface.

PRO PLUG® SYSTEM FOR PVC | PRODUCT FEATURES

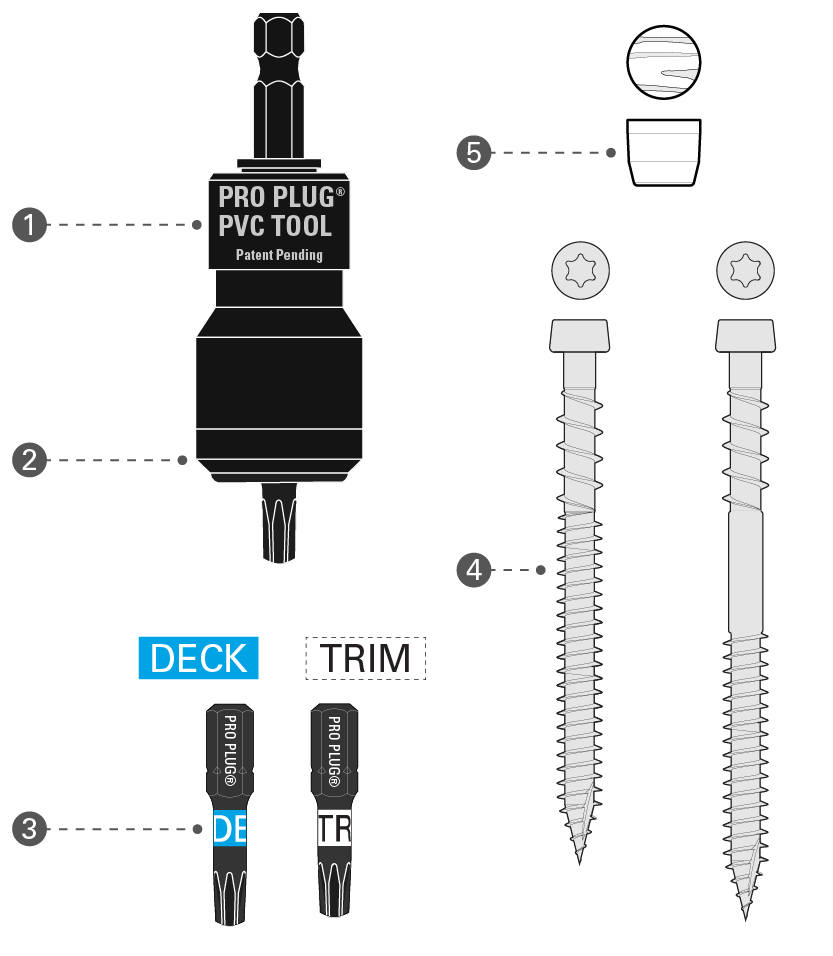

A diagram of a pro plug pvc tool and screws.
(1) Auto-Stop™ Mechanism
Once target depth is reached, the Auto-Stop™ mechanism inside the tool disengages the driver bit and stops the screw from driving further, preventing the screw recess from stripping.

(2) Free Spinning Stop Collar
The free spinning stop collar is fitted with a rubber O-ring to prevent damage to the work surface.

(3) Special bits for Deck and Trim Applications
Driver bits used with the PVC Tool are replaceable. There are two types of driver bits: DECK bits and TRIM bits, each optimized for their specific application. Both PVC Tool packages and PVC Deck/Trim Kits include spare bits.

(4) Stainless and Epoxy Coated Star Drive Fasteners:
Stainless fasteners are 10 x 2-1/2". Epoxy Coated fasteners are 10 x 2-3/4". Both fasteners are ACQ approved. When driven below the surface with the PVC Tool, both fasteners create a perfect hole for the plug, without pre-drilling.

(5) Plugs
Plugs are made from actual deck and trim board material, so the color and grain match perfectly.
Pro Plug System for PVC components and features.

INSTRUCTIONS

  1. Insert the appropriate driver bit into the PRO PLUG® PVC Tool. The “DECK” bit is for PVC decking; the “TRIM” bit is for PVC trim.
  2. Drive the PRO PLUG® PVC screw with the PRO PLUG® PVC Tool in a straight and stable fashion. The screw is set when the Auto-Stop™ mechanism engages fully. In most deck and trim materials, the tool makes a pop sound indicating that the screw has reached the correct depth below the board surface.
  3. Insert the plug into the hole above the fastener and tap it into place with a smooth face steel hammer until it is flush with the deck/trim surface. Keep hammer head flat with the board to prevent surface marring.
Further instructions and installation notes are included in every PVC Deck/Trim Kit.
